Acetabular plates & Cemented cups
The LimaCorporate Acetabular Plates design provides a supporting structure when using a cemented acetabular component for low bone quality. The cemented cups are offered in standard and protruded versions.
Benefits
01
Constructed using pure titanium
02
Cranial wings, caudal hook & bone screw holes
03
Poly cups up to ID 36mm
Images
About

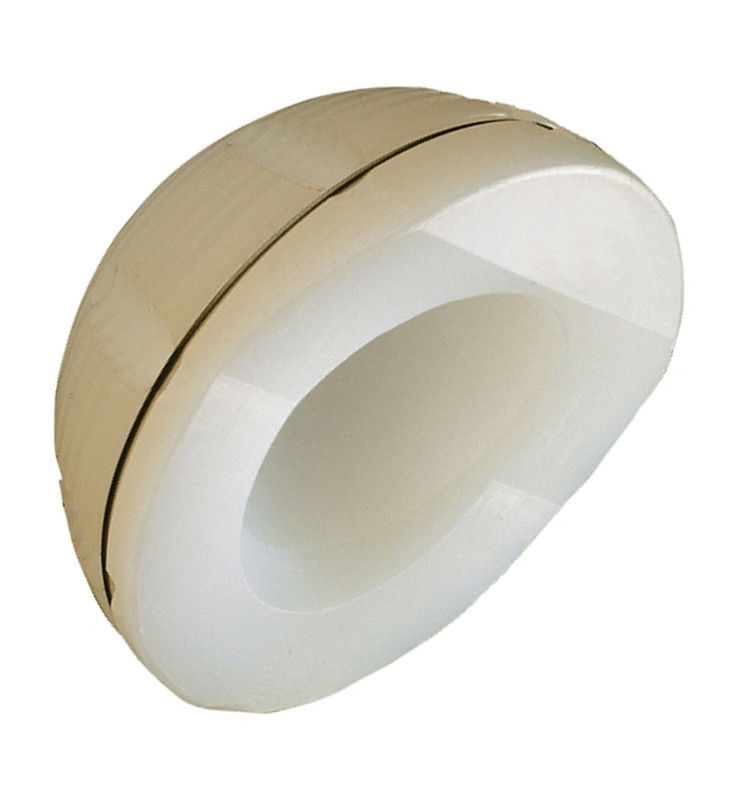

LimaCorporate’s cemented cups are manufactured in UHMWPE and are available in several sizes and two different versions.

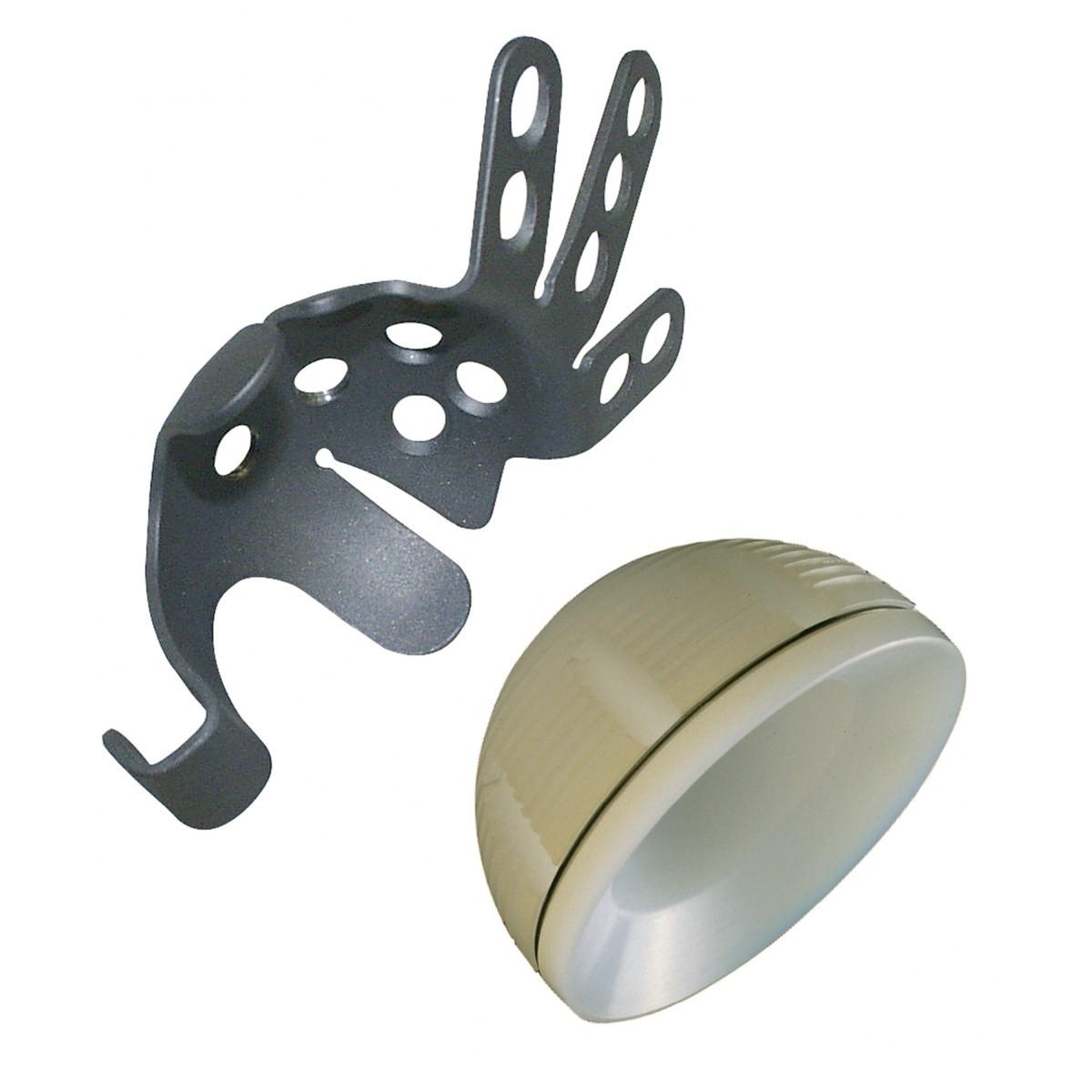

The standard version is completely hemispherical, and the anti-dislocation version has a lateral portion. This guarantees a greater coverage of the femoral head and prevents any risk of dislocation. The Acetabular Plates are designed as supporting structures for the UHMWPE cups. These reinforced cages, constructed of pure titanium, are suitable for several clinical cases; generally, for any case where the orthopedic surgeon is willing to use a cemented implant. The design features a caudal hook, with holes for screwing and wings that can be bent and adjusted to adapt to the bone, aiming to anchor the cage to the bone with the highest congruence between implant and the cage surface.
See bibliography
*BIOLOX®delta liners must be coupled with DELTA spacers when combined with DELTA One TT, DELTA Multihole TT or DELTA Revision TT cups.
Sizing
& Options

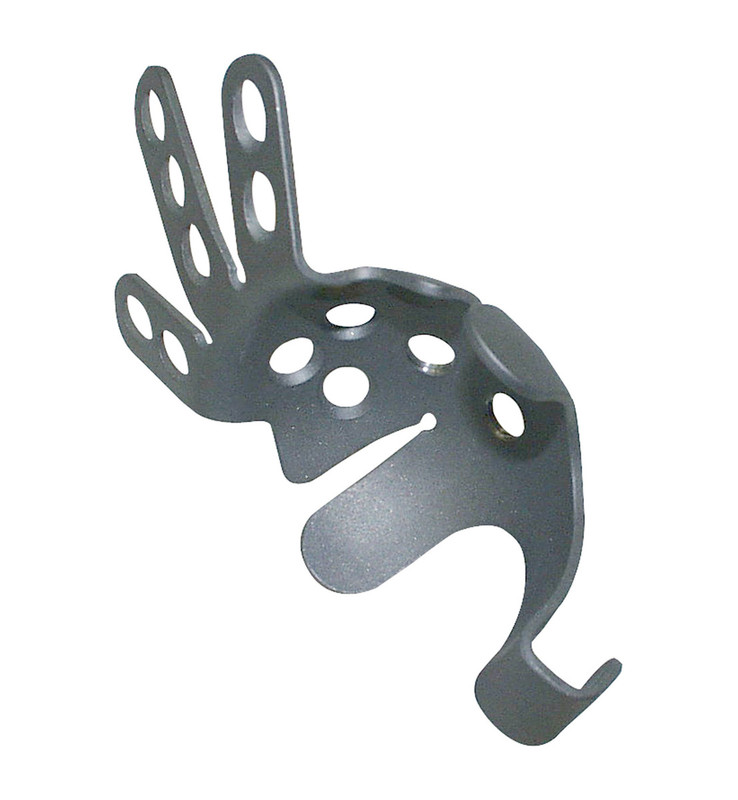

Acetabular plates Pure Titanium
Cranial wings standard, Ø 50 to 66mm in 4mm increments

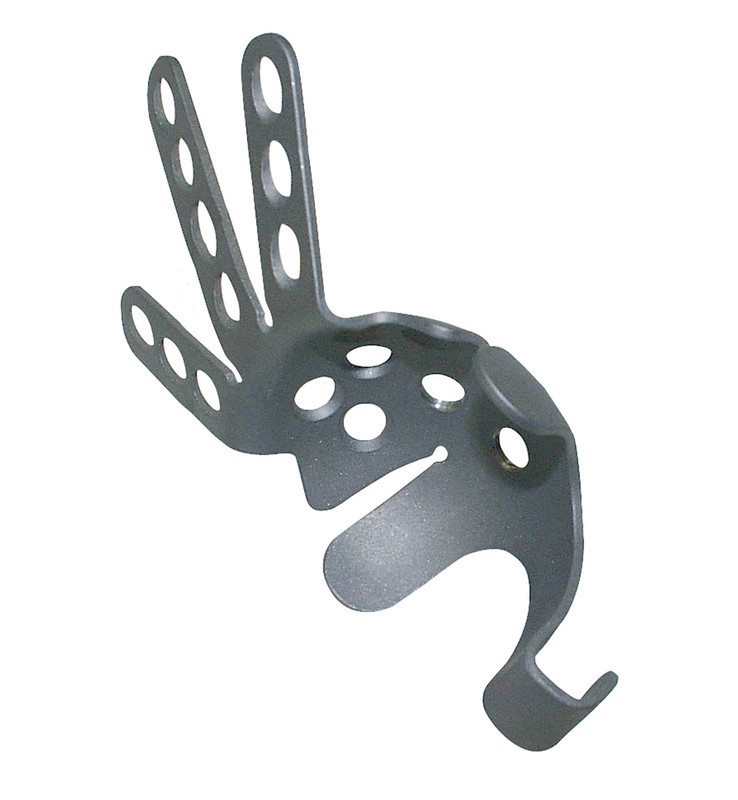

Acetabular plates Pure Titanium
Cranial wings long, Ø 50 to 66mm in 4mm increments
Cemented Cups Standard Acetabular Cups UHMWPE ID 28mm / OD 40mm up to 58mm ID 32mm / OD 44mm up to 58mm
Cemented Cups Protruded Acetabular Cups
UHMWPE
ID28mm / OD 44mm up to 58mm
ID32mm / OD 44mm up to 58mm
ID36mm / OD 48mm up to 58mm
